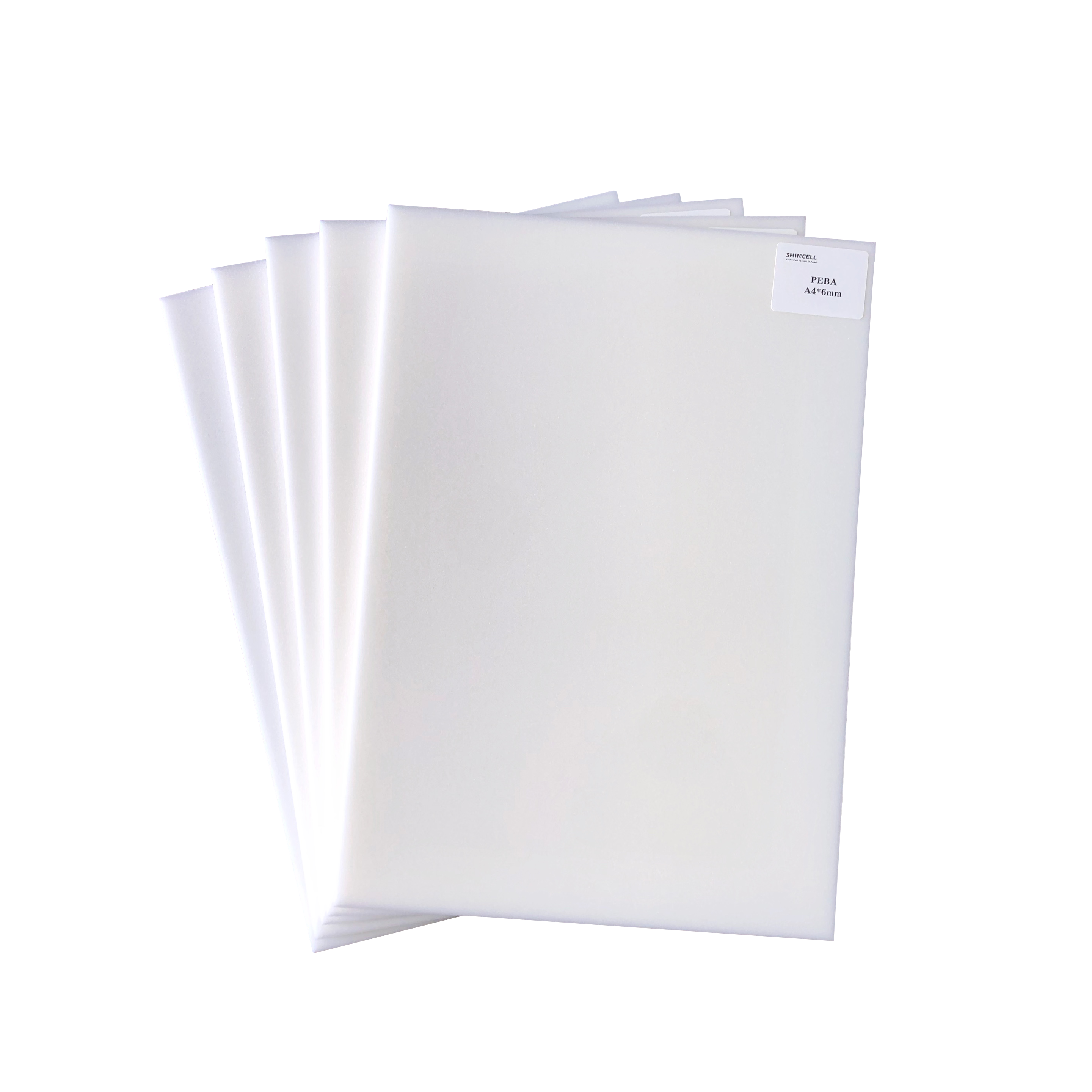

M-PEBAX Foam Sheet

M-PEBAX is microcellular PEBAX foam, produced using PEBAX as the composition with clean supercritical carbon dioxide as blowing agent to form a large number of microcells in the matrix.
  • description

Characteristic:

Light weight

Clean and environment friendly

Good cushion performance

Excellent low temperature resistance

Good chemical resistance

Reusable

Outstanding resilience



Basic Physical Properties

Test Item

Test Method

Unit

PEBAX06

Density

ISO 845:2006

g/cm³

0.06-0.08

Hardness

SATRA TM 205-16

Shore C

35±5

Application: Bulletproof vest, Model Aviation, Slippers, Backpack

Test results of mechanical properties

Test Item

Test Method

Unit

PEBAX06

Tensile Strength

ISO 1798:2008

MPa

1.2

Elongation at Break

ISO 1798:2008

%

100

Compression Set

ASTMD3574
(50%,[email protected]℃ Ct=[(t0-tf )/t0 ]x100)

%

23

Method A Tear Trouser Test

ISO 8067:2008

N/cm

14

Method B Tear Angle Test

ISO 8067:2008

N/cm

33

Ball Resilience

ASTM D3574

%

76



Application: Insole,midsole

Shincell New Material CO.,LTD.

  Shincell is a company dedicated to developing sustainable foaming technologies and manufacturing clean, environmentally friendly lightweight foam materials. And we also a China custom M-PEBAX Foam Sheet supplier and OEM/ODM M-PEBAX Foam Sheet factory. We use N2 and CO2 gases commonly found in the air to expand plastics and form a large number of micro and nano bubbles inside, a purely physical foaming process.
  Shincell was founded by Dr. Xiulei Jiang. He started his research on supercritical fluid foaming technology at East China University of Science and Technology in 2003 and proposed the technical process of supercritical molded microcellular foaming. His early interest lies in lightweight and high-strength foam materials, and his main product is PP microcellular foam sheets. Inspired by the Adidas boost midsole derived from TPU beads foaming, he started to study the sheet foaming technology of TPU elastomer material in 2015. Based on these years of basic research, Shincell has formed two series of products: soft high-elasticity lightweight materials and hard high-strength lightweight materials.Soft high elasticity products include TPU, TPEE and PEBA, PEBAX, etc., and hard high strength products include PP, PVDF, PPO, PA, etc.
  We focus on the research and development of foaming technology, we will continuously optimize the process, challenge our past self, improve efficiency and reduce cost, and continuously launch new products. Our foam materials are all thermoplastic and no chemical blowing agents are added in the foaming process, nor are they chemically cross-linked. We can provide our customers with online custom M-PEBAX Foam Sheet products at preferential factory wholesale prices. And compared to traditional foaming materials, our foam materials are recyclable, non-toxic and environmentally friendly, and meet the needs of sustainable development!
