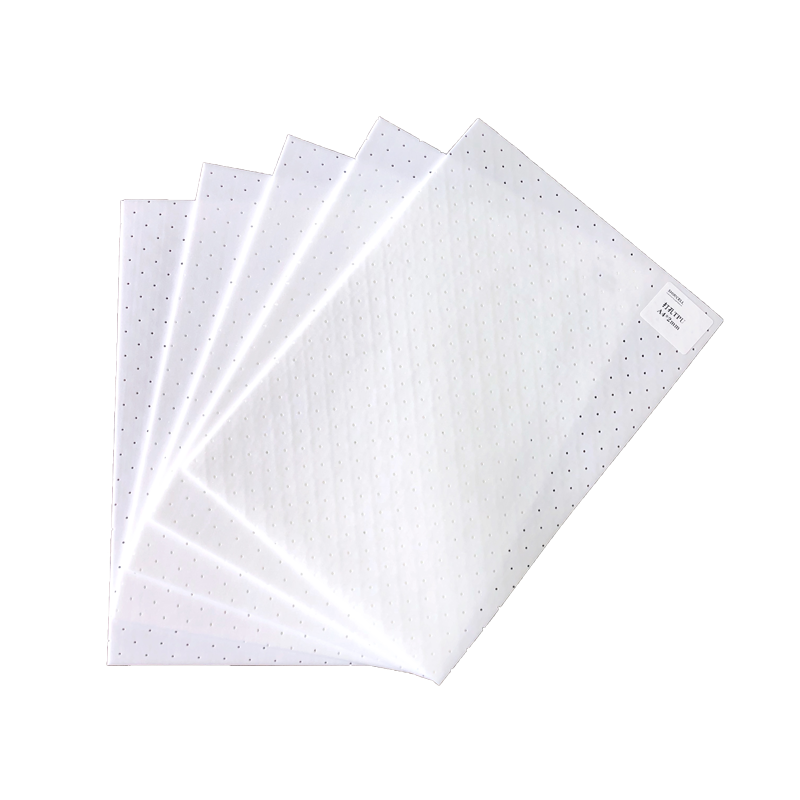

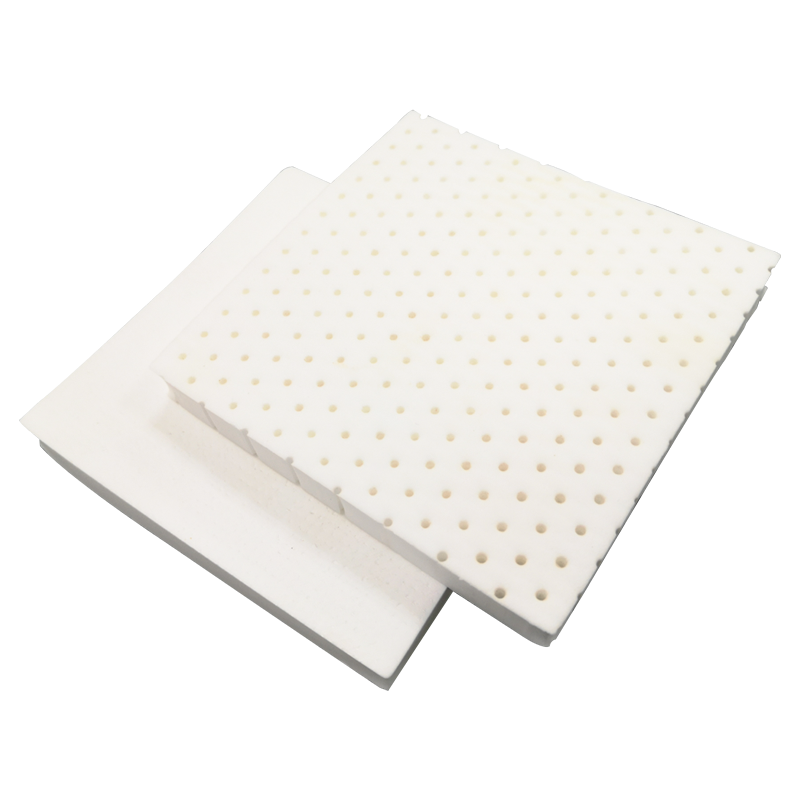

Perforated TPU Foam Sheet

Perforated MTPU is microcellular TPU foam, produced using thermoplastic polyurethane (TPU) as the composition with clean supercritical carbon dioxide as blowing agent to form a large number of microcells in the matrix.
  • description

Characteristic:

Light weight

Clean and environmental friendly

Good cushion performance

Excellent low temperature resistance

Good chemical resistance

Recyclable

Outstanding resilience

High tensile strength

Basic Physical Properties

Test Item

Test Method

Unit

MTPU12

T16

T20

Density

ISO845:2006

g/cm3

0.12±0.015

0.14-0.18

0.18-0.22

Hardness

SATRA TM 205-16

Shore C

23±3

27

34





Test result of mechanical properties

Test Item

Test Method

Unit

MTPU12

MTPU16

MTPU20

Tensile Strength

ISO 1798:2008

MPa

1.4

4.0

4.4

Elongation at Break

ISO 1798:2008

%

130

320

360

Method A Tear Trouser Test

ISO 8067:2008

N/cm

20

42

52

Method B Tear Trouser Test

ISO 8067:2008

N/cm

90

96

110

Ball Resilience

ASTM D3574

%

≥65

68

66

Compression set

ASTMD3574 50%,[email protected]℃ Ct=[(t0-tf )/t0 ]x100

%

26

25

23

Sun Test

ASTM D1148

/

/

4

4



Perforated M-TPU12:

Density: 0.12 g/cm3

Hardness: 23HC



Perforated M-TPU16:

Density: 0.16g/cm3

Hardness: 27 HC



Application:

Yoga mat, shoe insole, Protective gears



Perforated M-TPU20:

Density: 0.20 g/cm3

Hardness: 34 HC

Applications:

Chemical mechanical polishing pads

Camera

Shincell New Material CO.,LTD.

  Shincell is a company dedicated to developing sustainable foaming technologies and manufacturing clean, environmentally friendly lightweight foam materials. And we also a China custom Perforated TPU Foam Sheet supplier and OEM/ODM Perforated TPU Foam Sheet factory. We use N2 and CO2 gases commonly found in the air to expand plastics and form a large number of micro and nano bubbles inside, a purely physical foaming process.
  Shincell was founded by Dr. Xiulei Jiang. He started his research on supercritical fluid foaming technology at East China University of Science and Technology in 2003 and proposed the technical process of supercritical molded microcellular foaming. His early interest lies in lightweight and high-strength foam materials, and his main product is PP microcellular foam sheets. Inspired by the Adidas boost midsole derived from TPU beads foaming, he started to study the sheet foaming technology of TPU elastomer material in 2015. Based on these years of basic research, Shincell has formed two series of products: soft high-elasticity lightweight materials and hard high-strength lightweight materials.Soft high elasticity products include TPU, TPEE and PEBA, PEBAX, etc., and hard high strength products include PP, PVDF, PPO, PA, etc.
  We focus on the research and development of foaming technology, we will continuously optimize the process, challenge our past self, improve efficiency and reduce cost, and continuously launch new products. Our foam materials are all thermoplastic and no chemical blowing agents are added in the foaming process, nor are they chemically cross-linked. We can provide our customers with online custom Perforated TPU Foam Sheet products at preferential factory wholesale prices. And compared to traditional foaming materials, our foam materials are recyclable, non-toxic and environmentally friendly, and meet the needs of sustainable development!
