PVDF Foam Sheet Custom

Home / Product / Foam Sheet / PVDF Foam Sheet

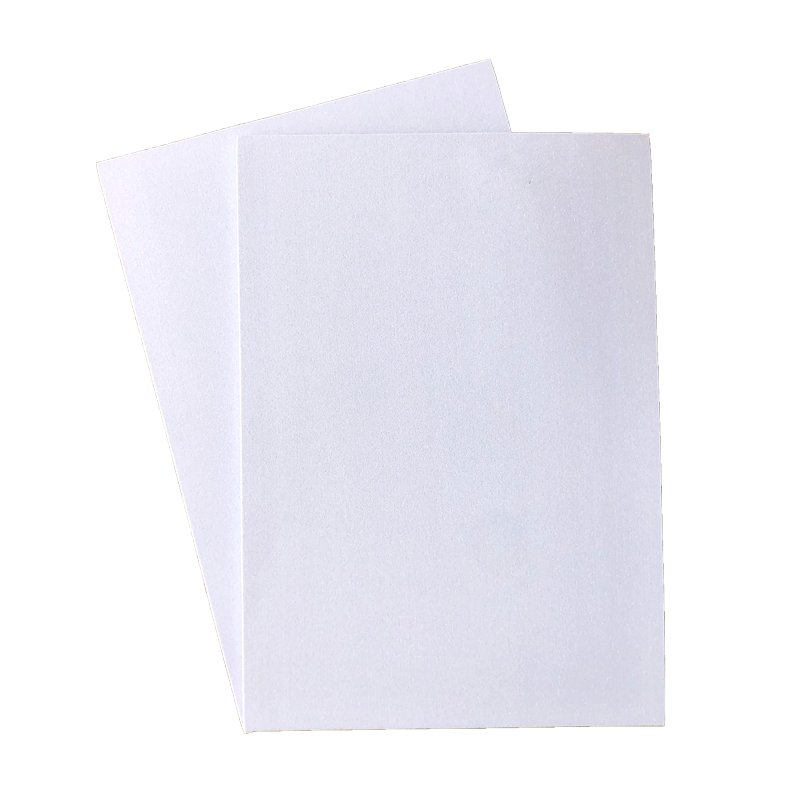

PVDF Foam Sheet

PVDF (poly vinylidene fluoride) foaming sheet has outstanding resistance to a wide range of aggressive chemicals. It also offers excellent toughness, wide temperature tolerance (-40 to 160℃), high dielectric strength and excellent resistance to nuclear radiation, UV and ageing.
  • description


Property


Test Method


Unit

Typical Value

V50

V70

Density

ISO 845:2006

g/cm3

0.05

0.07

Hardness

SATRA TM 205-16

Shore C

37-39

40-42

Tensile Strength

ISO 1798:2008

MPa

0.98

1.19

Elongation at Break

ISO 1798:2008

%

54.56

66

Method A tear Trouser Test

ISO 8067:2008

N/cm

0.62

0.94

Method B tear Trouser Test

ISO 8067:2008

N/cm

38.72

43.98

Ball Resilience

ASTM D3574

%

55.5

49.5

Application:

Construction

Aviation&aerospace

Military

Li battery

Semiconductor

Petrochemical

Pharmaceutical industries

Shincell New Material CO.,LTD.

  Shincell is a company dedicated to developing sustainable foaming technologies and manufacturing clean, environmentally friendly lightweight foam materials. And we also a China custom PVDF Foam Sheet supplier and OEM/ODM PVDF Foam Sheet factory. We use N2 and CO2 gases commonly found in the air to expand plastics and form a large number of micro and nano bubbles inside, a purely physical foaming process.
  Shincell was founded by Dr. Xiulei Jiang. He started his research on supercritical fluid foaming technology at East China University of Science and Technology in 2003 and proposed the technical process of supercritical molded microcellular foaming. His early interest lies in lightweight and high-strength foam materials, and his main product is PP microcellular foam sheets. Inspired by the Adidas boost midsole derived from TPU beads foaming, he started to study the sheet foaming technology of TPU elastomer material in 2015. Based on these years of basic research, Shincell has formed two series of products: soft high-elasticity lightweight materials and hard high-strength lightweight materials.Soft high elasticity products include TPU, TPEE and PEBA, PEBAX, etc., and hard high strength products include PP, PVDF, PPO, PA, etc.
  We focus on the research and development of foaming technology, we will continuously optimize the process, challenge our past self, improve efficiency and reduce cost, and continuously launch new products. Our foam materials are all thermoplastic and no chemical blowing agents are added in the foaming process, nor are they chemically cross-linked. We can provide our customers with online custom PVDF Foam Sheet products at preferential factory wholesale prices. And compared to traditional foaming materials, our foam materials are recyclable, non-toxic and environmentally friendly, and meet the needs of sustainable development!
