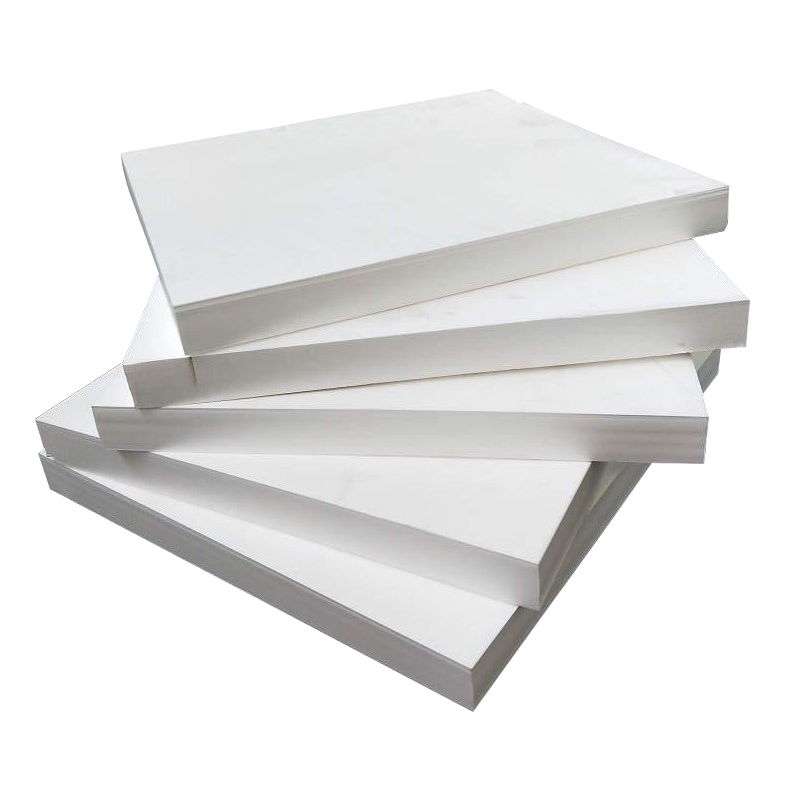

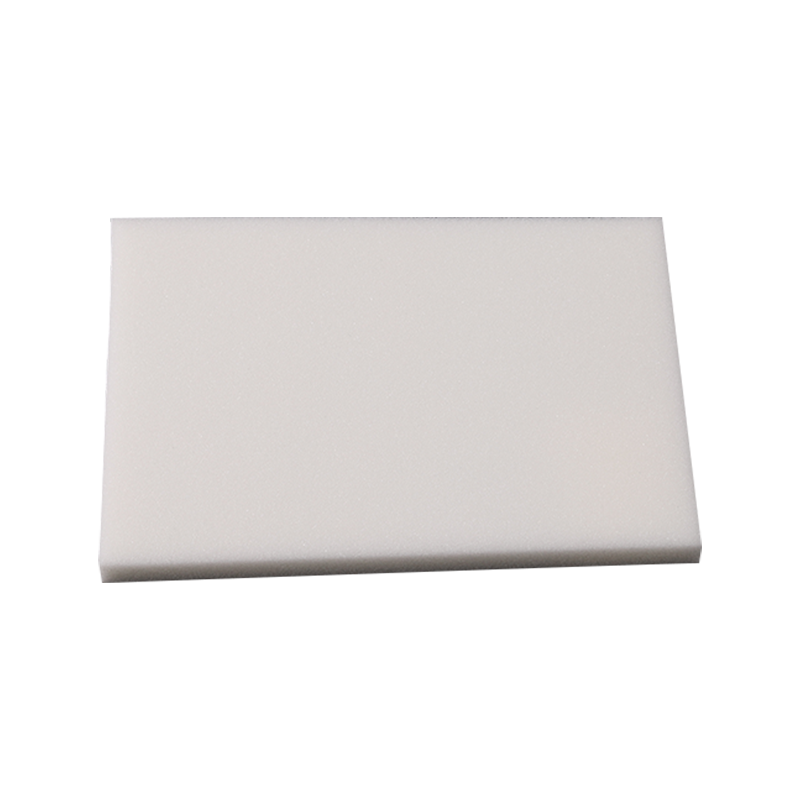

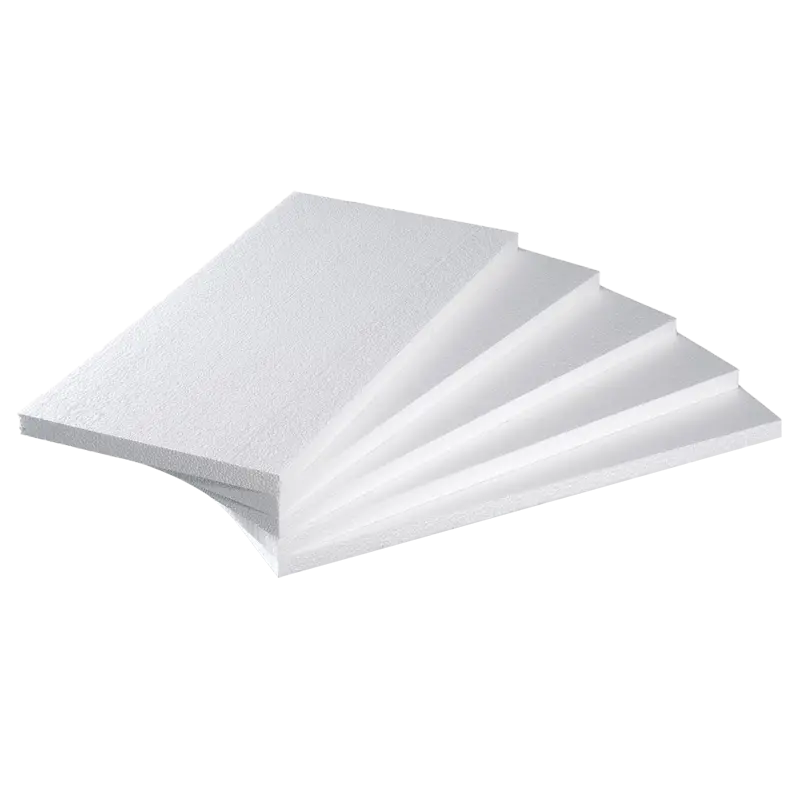

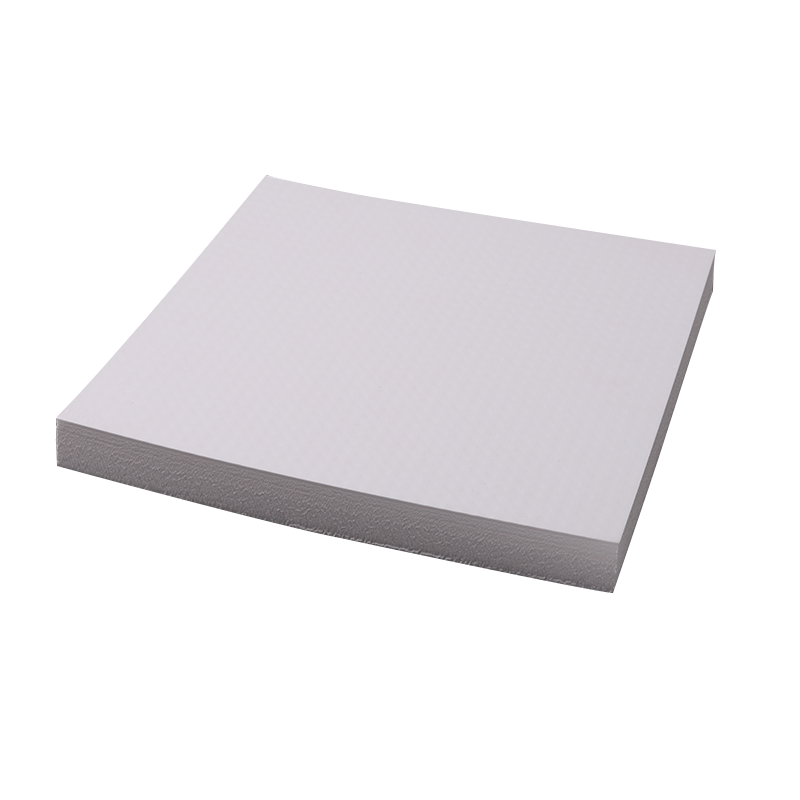

MPP Foam Sheet

Microcellular Polypropylene foam is a porous foam made from a polypropylene base material with a large number of micron-sized bubbles formed in it by clean supercritical carbon dioxide technology.
  • description

Characteristic:

Lightweight and high strength

Clean and environmentally friendly

Good cushioning protection performance

Good surface protection performance

Good waterproof performance

Good thermal insulation performance

Good chemical resistance

Recyclable

Basic Physical Properties

Test Item

Test Method

Unit

Typical Values

Density

ISO 845:2006

Kg/m³

30-100

Hot Deformation Temperature

ISO 75-2

120

Thermal Conductivity

GB/T 10294-2008

W/(m*k)

0.040

Water Absorption

CNS2536-1990 THE 3RD, 10TH SECTION

%

<0.10

Chemical Resistance

/

/

Resistant to strong acids and alkalis



Test results of mechanical properties

Test Item

Test Method

Unit

Multiplier

10P

15P

20P

25P

Density

ISO 845:2006

kg/m³

90

60

45

36

Compressive Strength 10%

GB/T8813-2008

MPa

0.56

0.36

0.3

0.23

Bending Strength

GB-T 8812.2-2007

MPa

0.9

0.68

0.44

0.36

Bending Modulus

GB-T 8812.2-2007

MPa

49

33

24

18

Hardness

SHORE C

HC

81

75

66

55

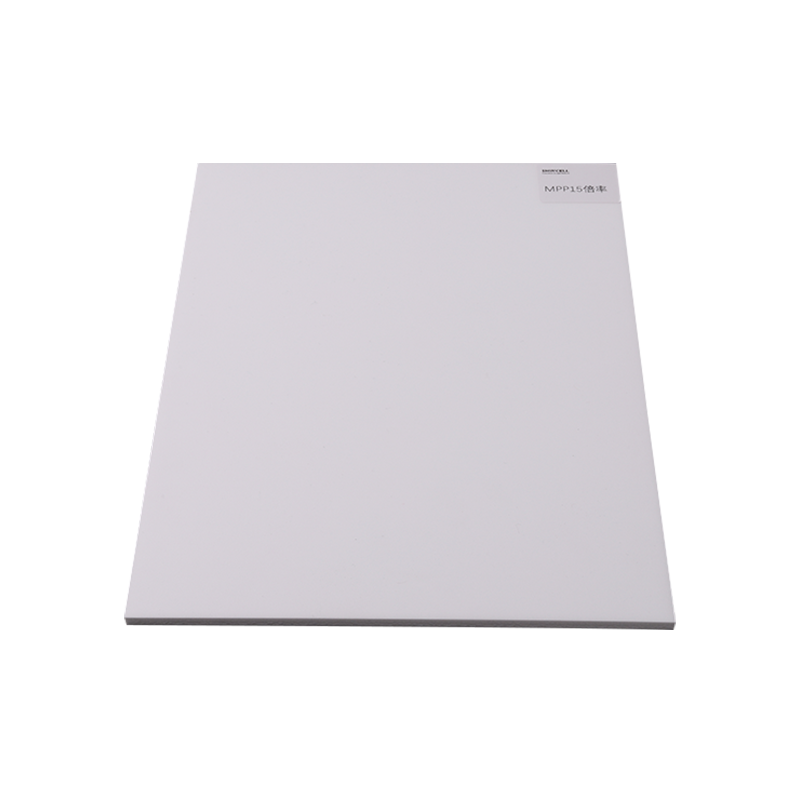

MPP15:

Density: 0.06 g/cm³

Hardness: 75 HC

Application: Bulletproof vest, Model Aviation, Slippers, Backpack

MPP20:

Density: 0.045 g/cm³

Hardness: 66 HC

Application: Bulletproof vest, Model Aviation, Slippers, Backpack

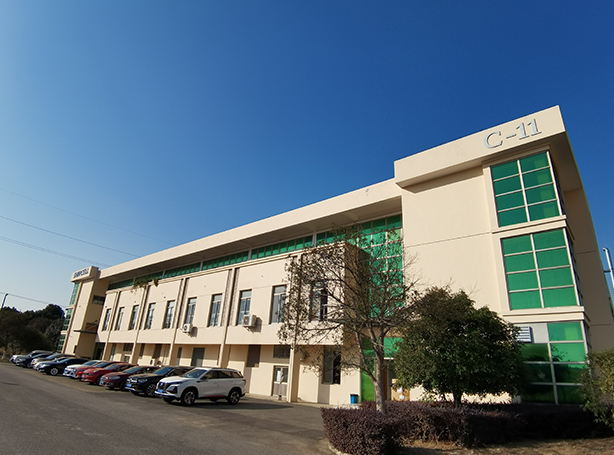

Shincell New Material CO.,LTD.

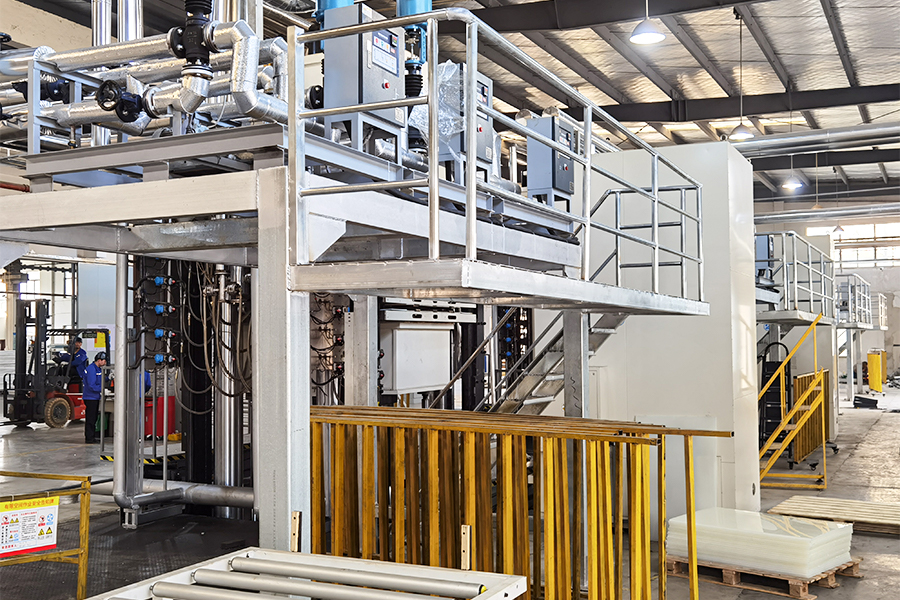

  Shincell is a company dedicated to developing sustainable foaming technologies and manufacturing clean, environmentally friendly lightweight foam materials. And we also a China custom MPP Foam Sheet supplier and OEM/ODM MPP Foam Sheet factory. We use N2 and CO2 gases commonly found in the air to expand plastics and form a large number of micro and nano bubbles inside, a purely physical foaming process.
  Shincell was founded by Dr. Xiulei Jiang. He started his research on supercritical fluid foaming technology at East China University of Science and Technology in 2003 and proposed the technical process of supercritical molded microcellular foaming. His early interest lies in lightweight and high-strength foam materials, and his main product is PP microcellular foam sheets. Inspired by the Adidas boost midsole derived from TPU beads foaming, he started to study the sheet foaming technology of TPU elastomer material in 2015. Based on these years of basic research, Shincell has formed two series of products: soft high-elasticity lightweight materials and hard high-strength lightweight materials.Soft high elasticity products include TPU, TPEE and PEBA, PEBAX, etc., and hard high strength products include PP, PVDF, PPO, PA, etc.
  We focus on the research and development of foaming technology, we will continuously optimize the process, challenge our past self, improve efficiency and reduce cost, and continuously launch new products. Our foam materials are all thermoplastic and no chemical blowing agents are added in the foaming process, nor are they chemically cross-linked. We can provide our customers with online custom MPP Foam Sheet products at preferential factory wholesale prices. And compared to traditional foaming materials, our foam materials are recyclable, non-toxic and environmentally friendly, and meet the needs of sustainable development!
SHINCELL

Looking for a reliable supplier in the foam sheet field?

Contact us

If you need it, please contact us!

Fuying will review your information once it is received and contact you to the opportunity in more detail.

  • *Name.

  • *E-mail.

  • Phone.

  • *Message.

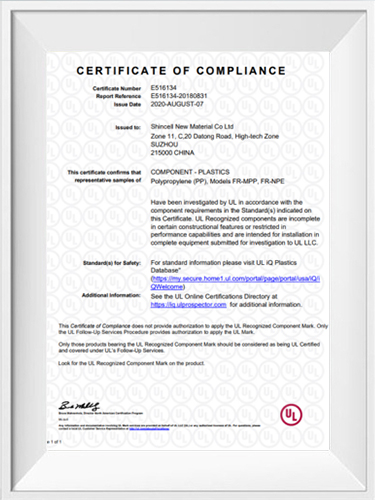

Our Certification
